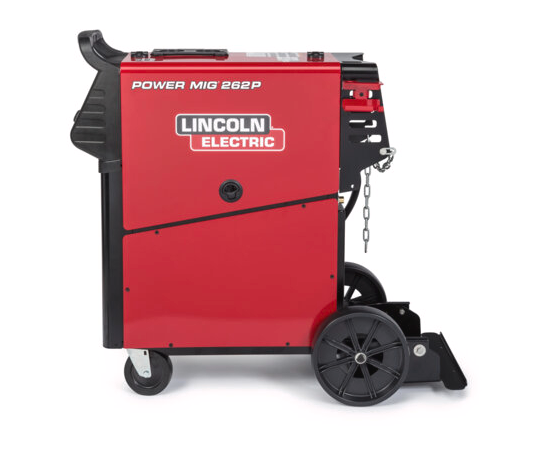

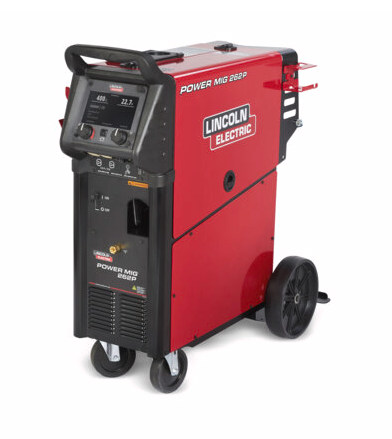

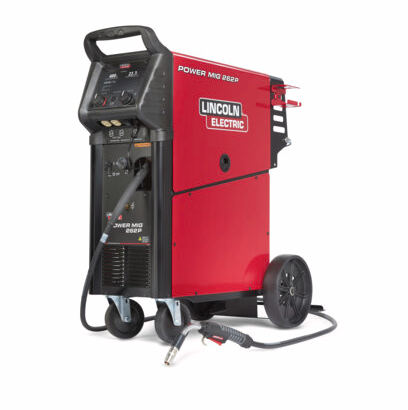

Lincoln Electric - POWER MIG® 262P Pulsed MIG Welder

Product Overview

The Lincoln Electric POWER MIG® 262P is built for professionals who demand more. With a powerful 300A max output and support for MIG, Pulsed MIG, and Flux-Cored welding, this machine delivers high-end capability for serious fabrication work. Featuring a 7-inch color display, Weld Set Memory, Ready.Set.Weld® technology, ArcFX® feedback, and three aluminum feeding methods, the 262P ensures both precision and power are always within reach.

Key Features

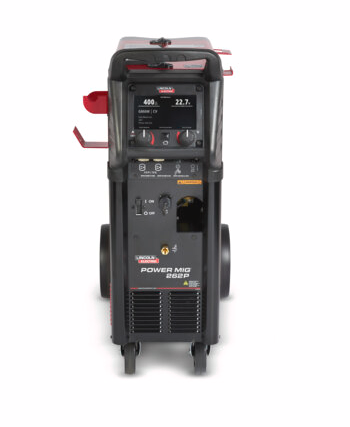

• 7-Inch LCD Display: Intuitive interface simplifies operator control and weld setup.
• 300 Amp Max Output: Delivers the muscle for demanding projects.
• Aluminum Pulse Process: Easily welds 4XXX and 5XXX series aluminum with quality results.
• Versatile Process Capability: MIG, Pulsed MIG, and Flux-Cored in one machine.
• Memory Recall: Save and reload settings for speed and consistency.
• Synergic Control: One-knob control automatically sets optimal parameters.
• 3 Ways to Feed Aluminum: Push Gun, Spool Gun, or Push-Pull Gun support built-in.
• MAXTRAC® Wire Drive: Industrial-grade system ensures smooth, reliable feeding.

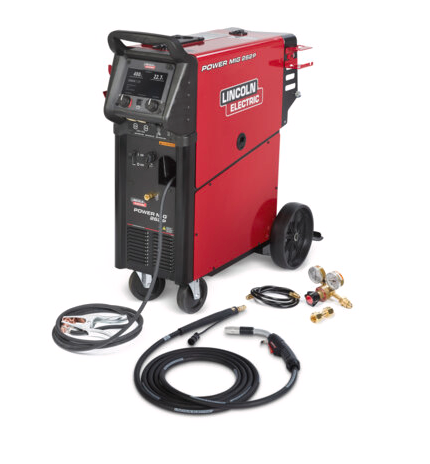

What's Included

• POWER MIG® 262P Welder
• Quick Storage Accessories
• 10 ft. Work Cable with Clamp
• 10 ft. Power Cable with Plug
• Deluxe Adjustable Gas Regulator & Hose (K586-1)
• Magnum® PRO 250L Welding Gun – 15 ft. (K4530-2)
• Drive Roll Kit Combo: 0.035 in. / 0.045 in. Solid Wire (KP1696-1)

Machine Specifications

• Processes: MIG, Pulsed MIG, Flux-Cored
• Output Range: 5 – 300 Amps
• Polarity: DC
• Open Circuit Voltage: 90V
• Input Voltage: 208 / 230 / 460 / 575V, Single Phase, 60 Hz
• Input Current: 49.1 / 44 / 22.1 / 17.6 Amps
• Connector Type: 12-Pin Amphenol
• Work Lead Connection: Lug

Dimensions & Weight

• Dimensions (H x W x D): 37.5” x 18” x 37.5” (947 x 457 x 952 mm)
• Net Weight: 250 lbs (113.4 kg)

Applications

• Automotive
• General Fabrication
• Maintenance & Repair
• Welding Education & Training

Warranty

Includes a 3-Year Lincoln Electric Manufacturer Warranty.
