J & L Industries -White Steel Cabinet for 10 lb. Fire Extinguishers with Vertical Window, 3" Trim, and Semi-Recessed 6" Depth

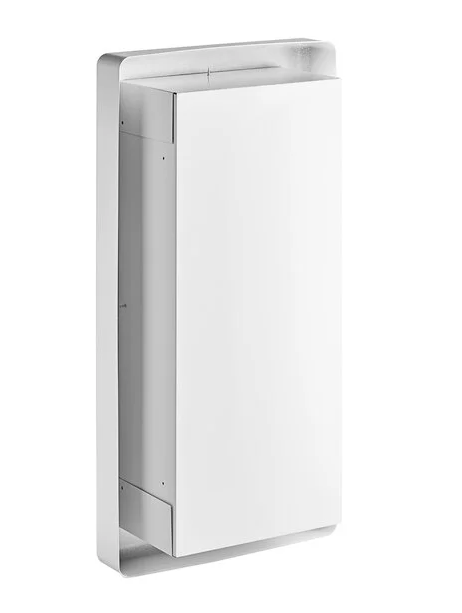

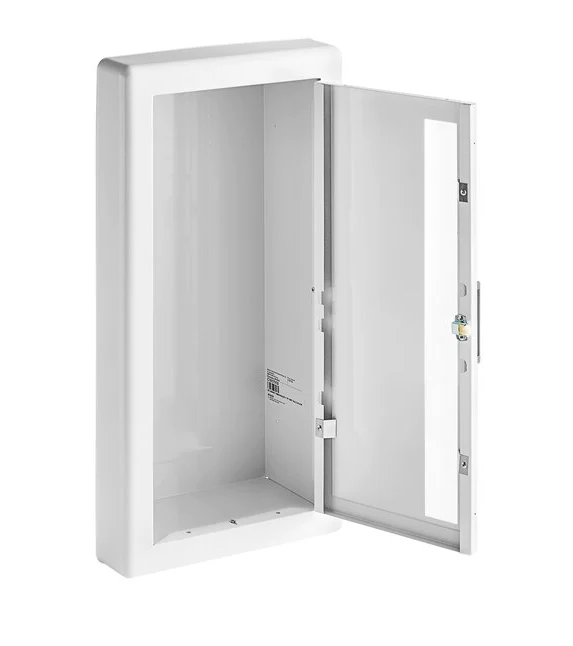

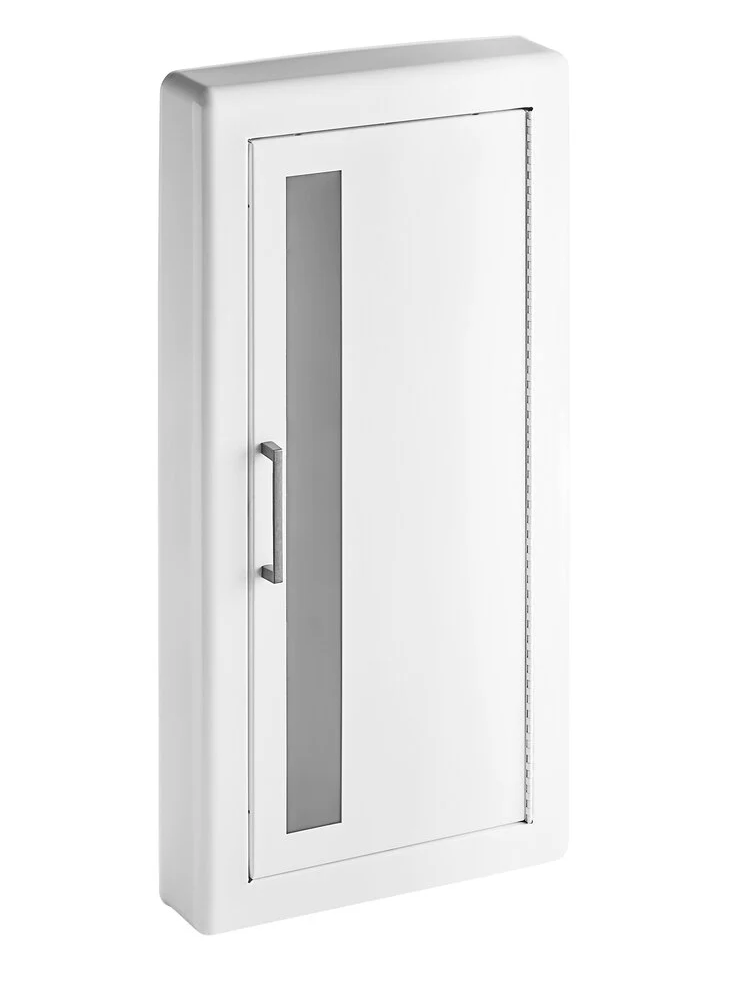

J&L Industries 1017V10 Fire Extinguisher Cabinet

The J&L 1017V10 semi-recessed fire extinguisher cabinet offers a sleek, architectural design with a vertical duo panel door and clear acrylic vision panel. This cabinet combines functionality and style, making it a great choice for commercial, educational, and office settings. The cabinet is fabricated from durable cold rolled steel with a white powder-coat finish and is built to accommodate most 5 lb and 10 lb fire extinguishers.

Construction & Features

• Door Style: Vertical duo panel with clear acrylic glazing
• Trim & Door Material: Cold rolled steel with white powder-coat finish
• Tub Material: Cold rolled steel, finished to match
• Mounting Style: Semi-recessed (3” trim projection)
• Lock Option: Cylinder lock available upon request

Dimensions

• Wall Opening: 11.5" W x 25" H x 3.125" D
• Trim Projection: 3" (semi-recessed)

Compatibility

• Extinguisher Capacity: Compatible with most standard 5 lb and 10 lb fire extinguishers
• Fire-Rated: No
• ADA Compliant: Yes, when mounted per code requirements

Applications

• Offices & Administrative Buildings
• Retail Stores
• Schools & Universities
• Commercial Corridors
• Hospitals & Healthcare Facilities
