J & L Industries - Fire Extinguisher Cabinet - Semi-Recessed, 10 lb

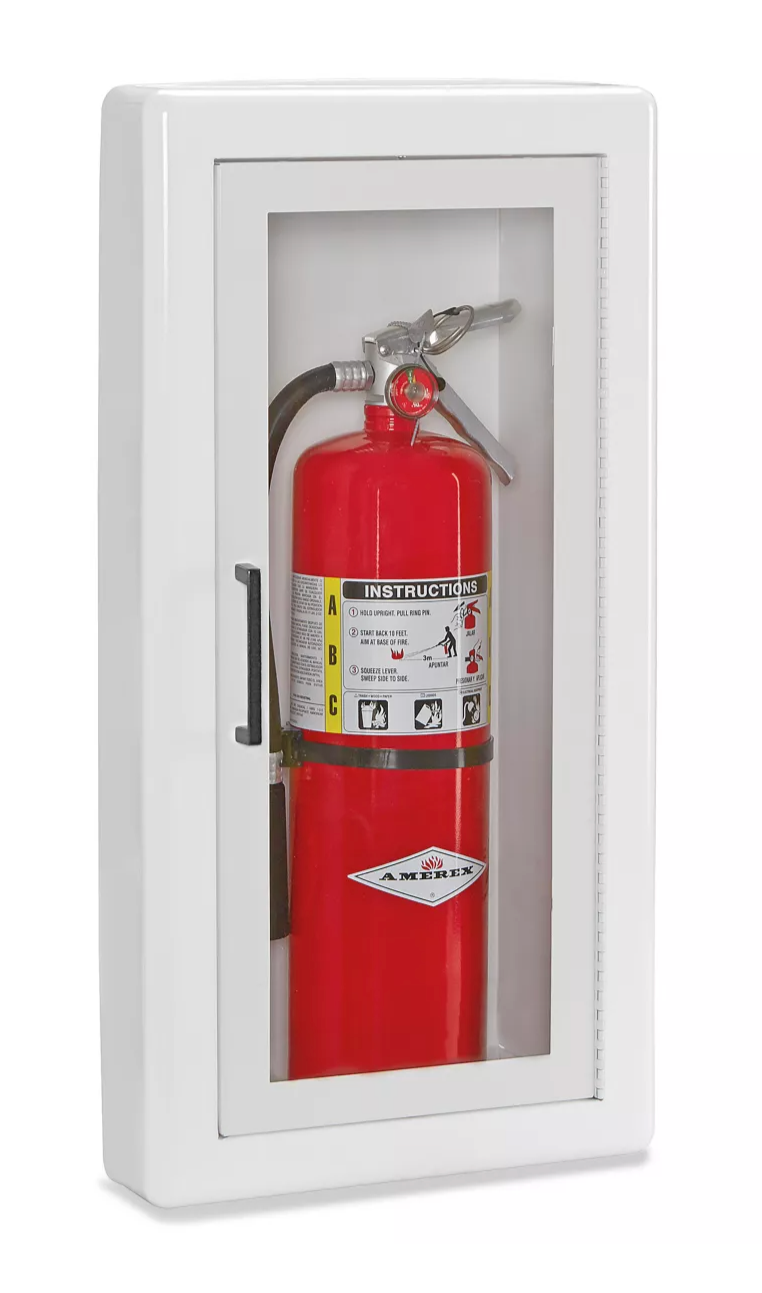

J&L 1017F10 Fire Extinguisher Cabinet

The J&L 1017F10 semi-recessed fire extinguisher cabinet is built to house most standard 5 lb and 10 lb fire extinguishers. With its clean architectural design, clear acrylic glazing, and durable cold-rolled steel construction, it is ideal for commercial, industrial, educational, and residential installations. The cabinet features a white powder-coat finish and is built to meet both performance and aesthetic standards.

Construction & Features

• Material: Cold rolled steel
• Finish: White powder-coat (standard)
• Mounting Style: Semi-recessed trim (3" projection)
• Door Style: Solid steel with clear acrylic glazing
• Lock Option: Cylinder lock available
• Handle: Standard pull handle

Dimensions

• Wall Opening: 11.5" W x 25" H x 3.125" D
• Trim Projection: 3"
• Door Frame Depth: Flush with 3" trim for semi-recessed mounting

Tub & Door Glazing

• Tub Material: Cold rolled steel
• Tub Finish: White powder-coat
• Door Glazing: Clear acrylic window insert

Specifications

• Fire-Rated: No
• Extinguisher Capacity: Compatible with most 5 lb and 10 lb fire extinguishers
• Intended Use: Indoor commercial or institutional applications
• Compliance: ADA compliant when properly installed

Optional Accessories

• Break glass panel option
• Recessed handle variations
• Surface-mount trim conversion kits

⚠️ California Residents: Prop 65 Warning
