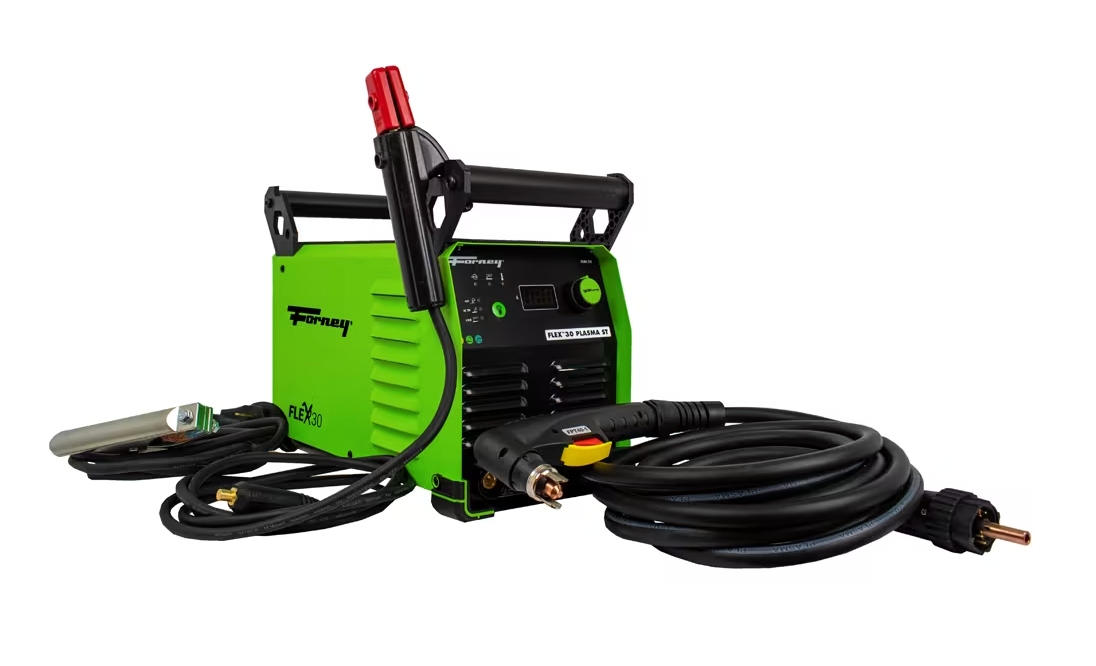

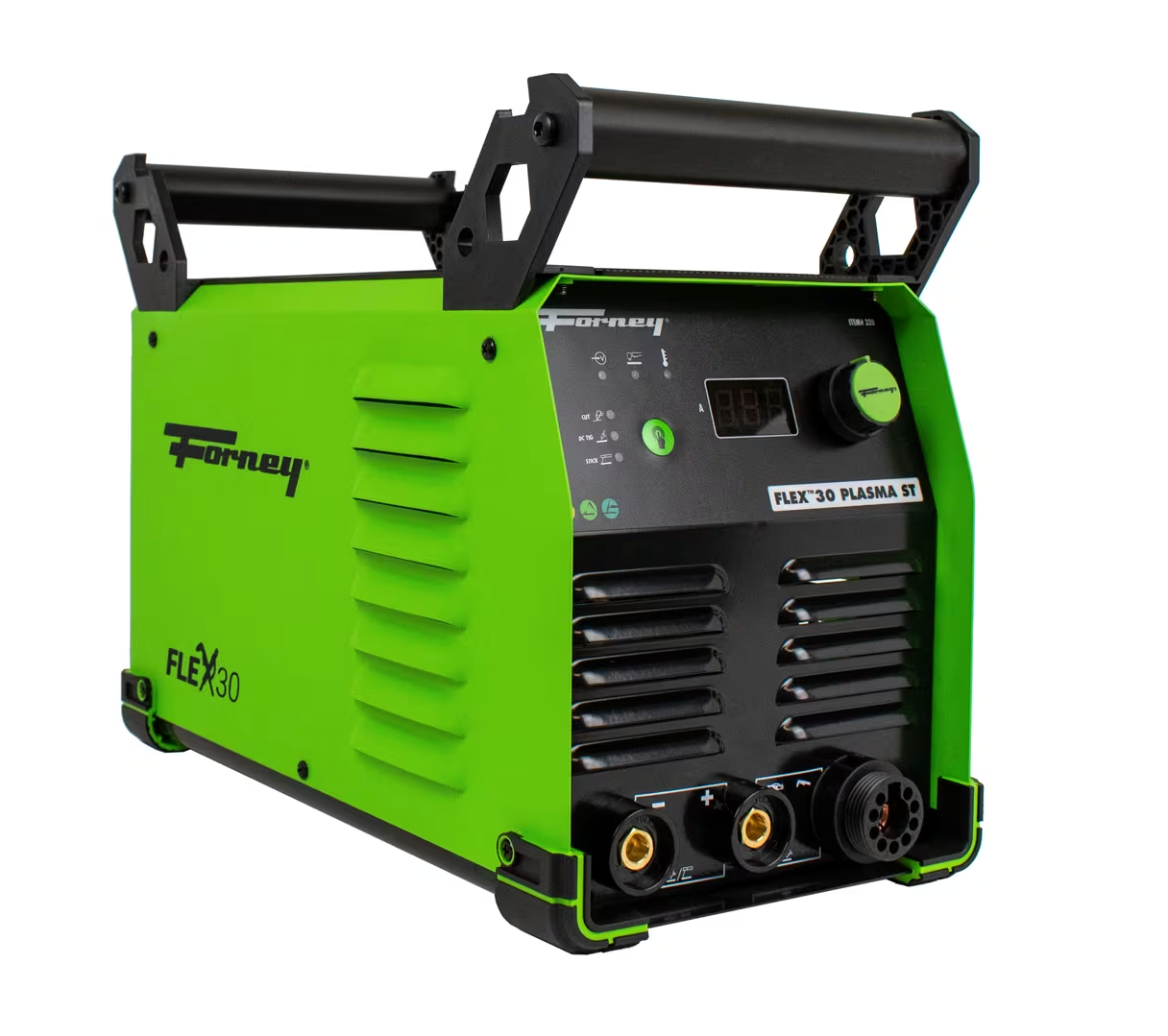

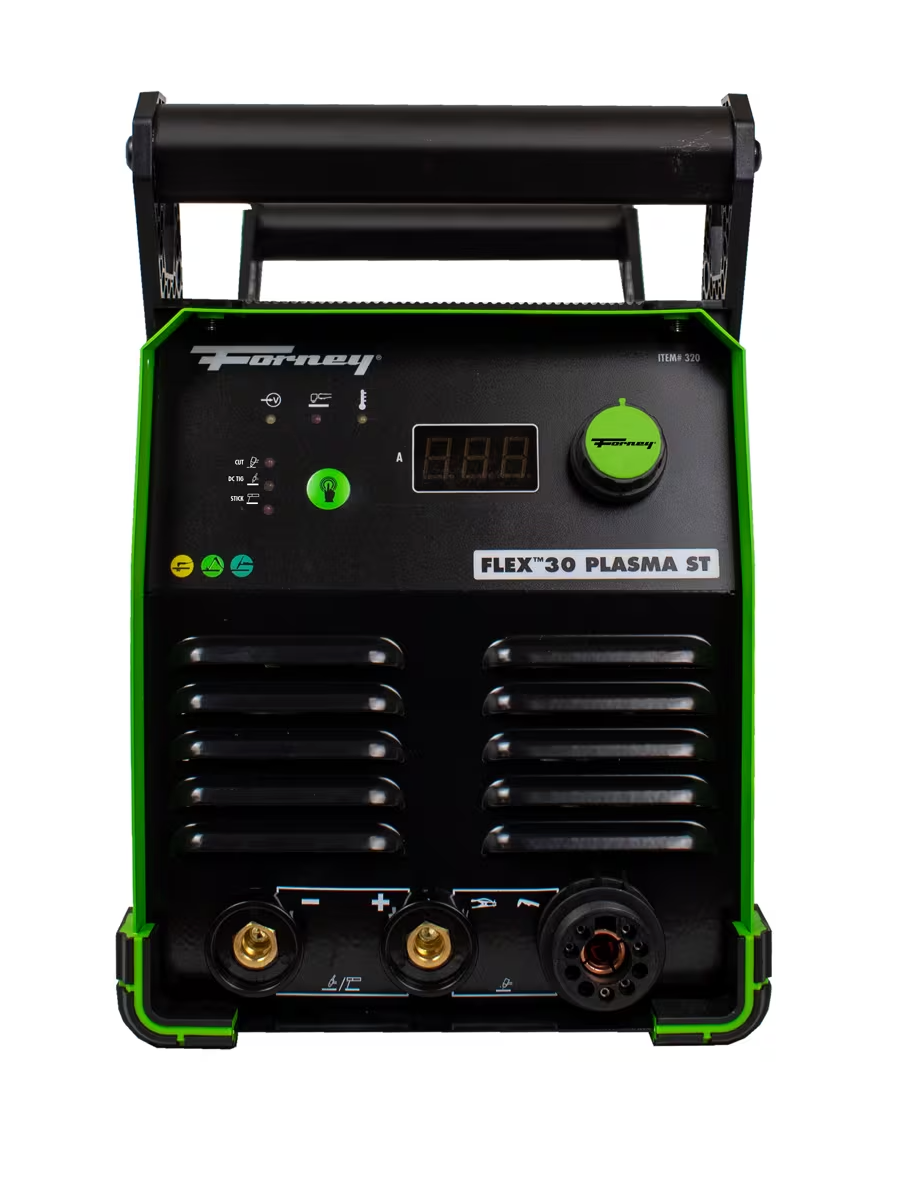

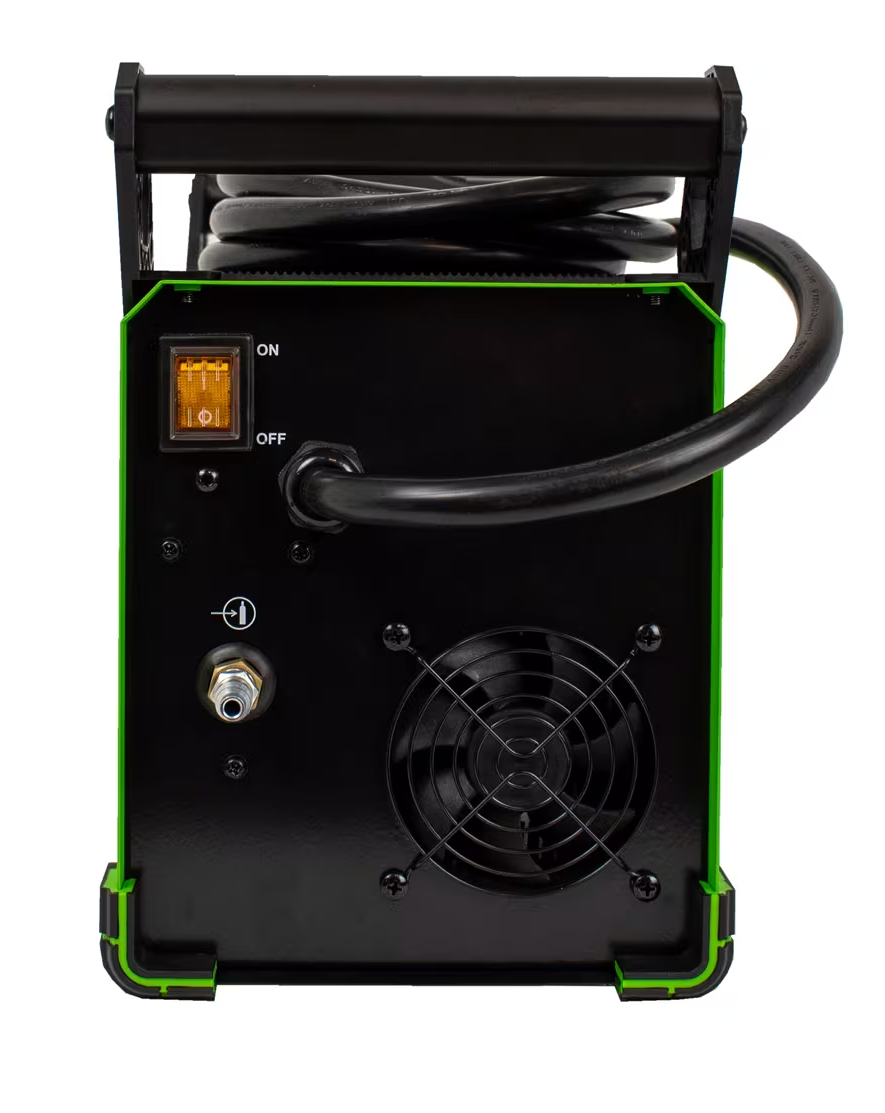

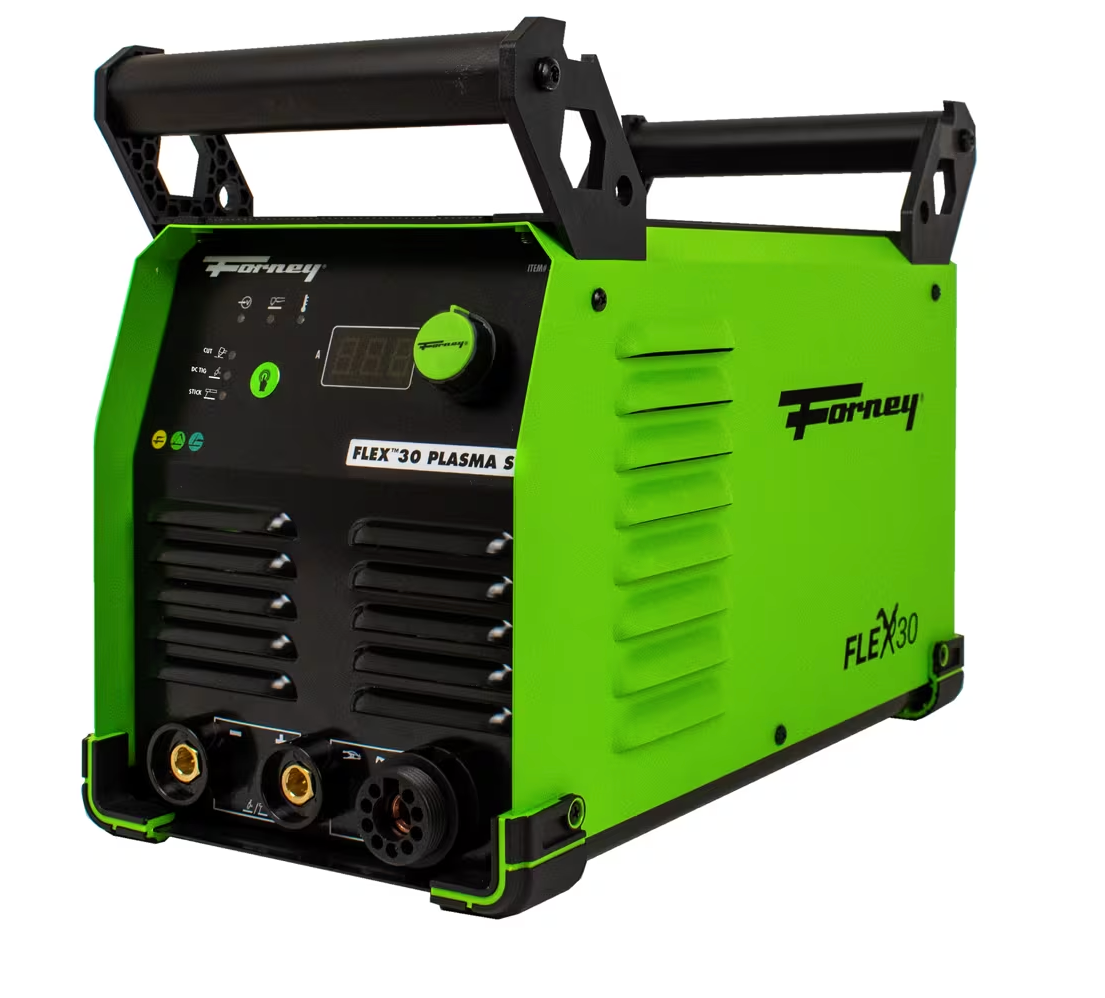

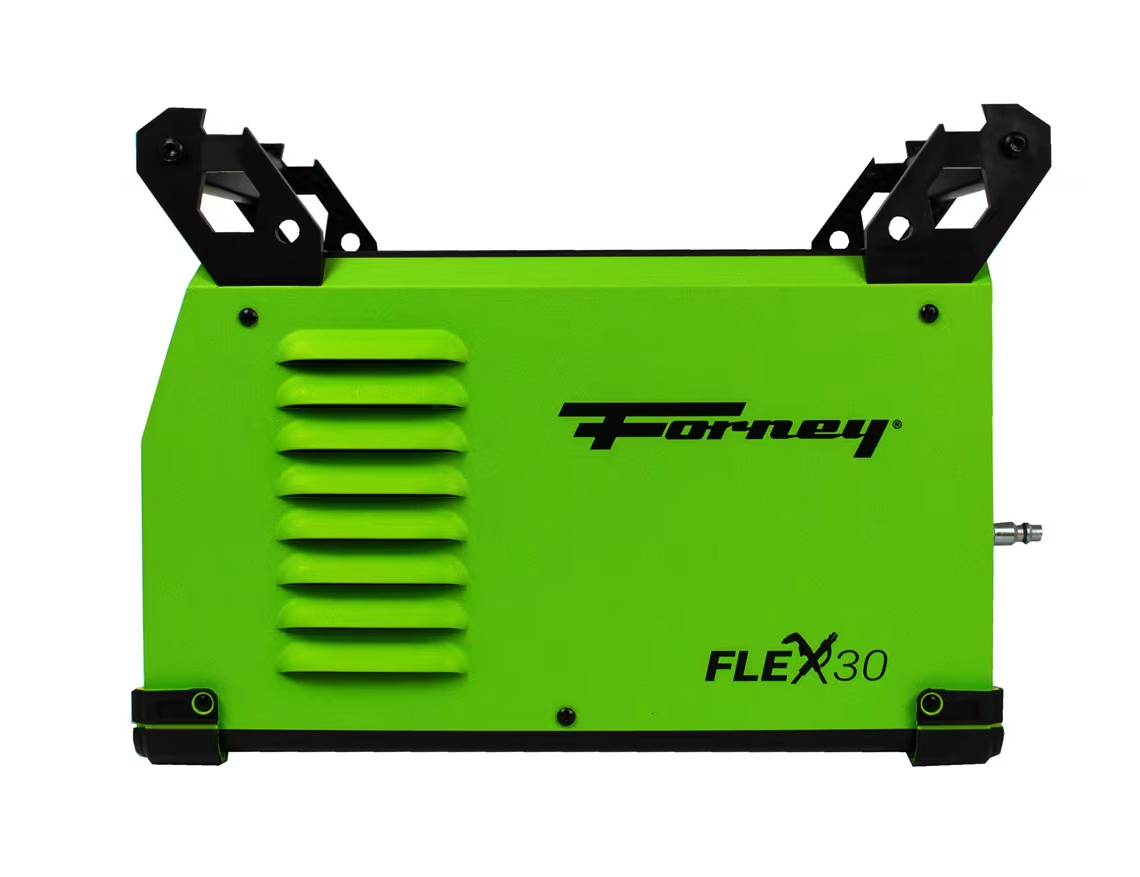

Forney - Flex 30 Plasma ST

Product Overview

The Forney Flex 30™ Plasma ST is the ultimate all-in-one welding and cutting machine—compact, powerful, and efficient. Whether you're working with mild steel, aluminum, or stainless, this dual-voltage unit is built to deliver. Featuring cutting-edge inverter technology and generator compatibility, it’s ideal for DIY, farm & ranch, maintenance, and light industrial applications.

Processes

• Stick Welding (SMAW)
• TIG Welding (GTAW) – Requires torch with gas valve (sold separately)
• Plasma Cutting

Material Compatibility

• Mild Steel
• Sheet Metal
• Stainless Steel
• Aluminum
• Copper

Specifications

• Input Voltage: 120V / 240V (Dual Voltage)
• Output (Welding): 120V @ 85A / 240V @ 160A (DC)
• Output (Cutting): 120V @ 20A / 240V @ 30A
• Cutting Capacity: 3/8” clean cut / 5/8” sever cut
• Electrode Diameter: Up to 5/32”
• Duty Cycle (TIG): 120V: 30% @ 85A / 240V: 30% @ 160A
• Duty Cycle (Stick): 120V: 30% @ 80A / 240V: 25% @ 160A
• Duty Cycle (Plasma): 120V: 35% @ 20A / 240V: 60% @ 30A
• Recommended Air Flow: 4.5 CFM
• Certification: CSA Listed
• Warranty: 3-Year (Machine) / 1-Year (Torch)

Key Features

• All-In-One Solution: Weld and cut with one compact, lightweight machine
• Dual Voltage: Operates anywhere 120V or 240V is available
• Built Tough: Rugged metal construction for durability
• Digital Display: Provides precision control and readouts
• Generator Friendly: Compatible with jobsite or portable generators

Included

• Forney Flex 30™ Plasma ST Machine
• 6 ft Power Cable
• 8 ft Stick Electrode Holder
• 8 ft Ground Clamp & Cable
• 15 ft Removable Plasma Torch (Euro Connect)
• 120V–240V Adapter Cord
• Additional Set of Consumables

Unit Dimensions

• Weight: 19.65 lbs. (8.62 kg)
• Dimensions: 16.68” x 8.25” x 11.94”

Recommended Accessories & Consumables

• ITEM# 85659 – 17FV TIG Torch (12.5 ft)
• ITEM# 85364 – Argon/CO2 Flow Meter
• ITEM# 85669 – Replacement Electrode Holder (15 ft)
• ITEM# 85667 – Ground Cable Assembly
• ITEM# 93097 – Electrode Storage Container
• ITEM# 70600 – Spring Handle Chipping Hammer
• ITEM# 85678 – Plasma Cutting Tip (0.8 mm, 30A)
• ITEM# 85755 – Plasma Cutting Electrode
• ITEM# 85680 – Replacement Plasma Torch
• ITEM# 85393 – Air Diffuser Ring (Swirl Ring)
• ITEM# 85681 – Shield Cup
• ITEM# 555 – 4.5 CFM Air Compressor
