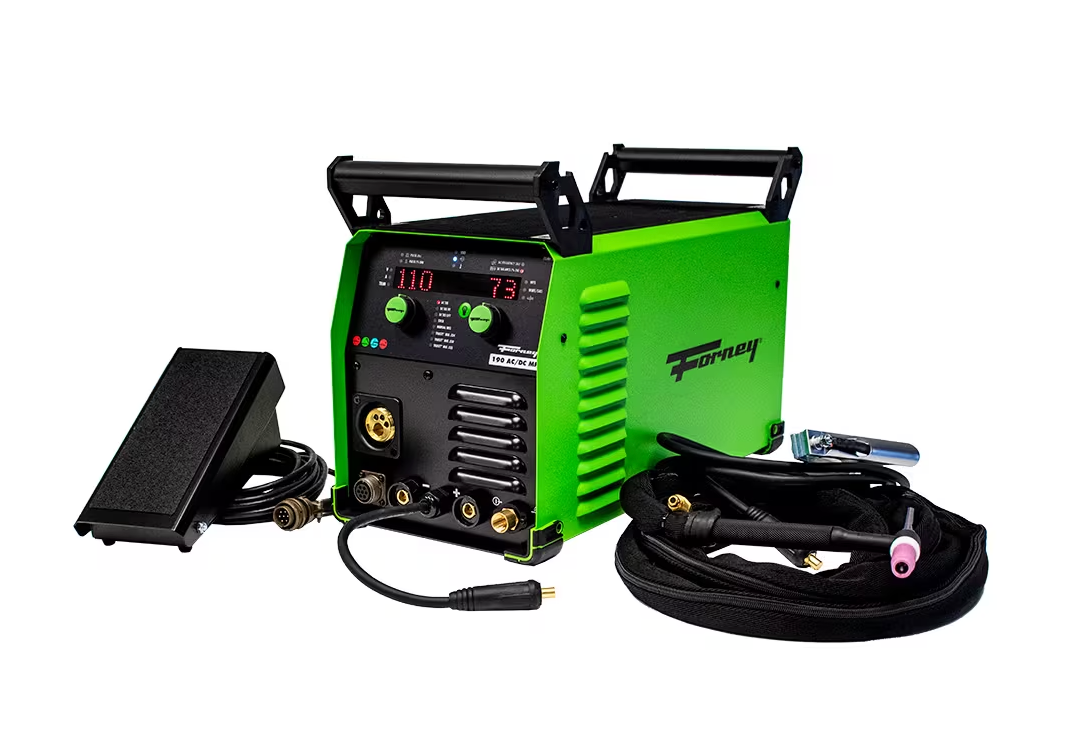

Product Overview
The Forney 190 AC/DC Multi-Process Welder is one of the most versatile machines on the market. Out of the box, it's ready to weld virtually anything. With the power to weld up to 3/8” and a wide output range of 10–190 AMPs, it's built for both professionals and serious DIYers. Innovative features like Set & Forget Despooler, optional TruSet™ control, and Pulse TIG technology make this welder a high-performance solution for welding mild steel, aluminum, stainless, copper, and more.
💸 $100 REBATE AVAILABLE
This machine qualifies for a $100 Greenback™ Rebate!
Ask us how to redeem your $100 rebate today and put more money back in your welding budget.
Processes
- AC TIG (AC GTAW)
- DC TIG (DC GTAW)
- TruSet™ MIG (Synergic GMAW)
- MIG (GMAW)
- Flux-Core (FCAW)
- Stick (SMAW)
Output Power
-
MIG: 120V: 30A–90A / 240V: 30A–190A
-
STICK: 120V: 10A–80A / 240V: 30A–170A
-
TIG: 120V: 10A–110A / 240V: 30A–190A
Input Power & Capacity
-
Input Voltage: 110V / 240V (Dual Voltage)
-
Single-Pass Welding Capacity: 120V: 24 ga – 1/4" / 240V: 24 ga – 3/8"
-
Wire Diameter: .024" – .035"
-
Electrode Diameter: 120V: 3/32"–1/8" / 240V: 3/32"–5/32"
Material Compatibility
- Mild Steel
- Sheet Metal
- Aluminum
- Stainless Steel
- Copper
- Nickel
Key Features
-
TruSet™ MIG: Automatically adjusts optimal weld settings
-

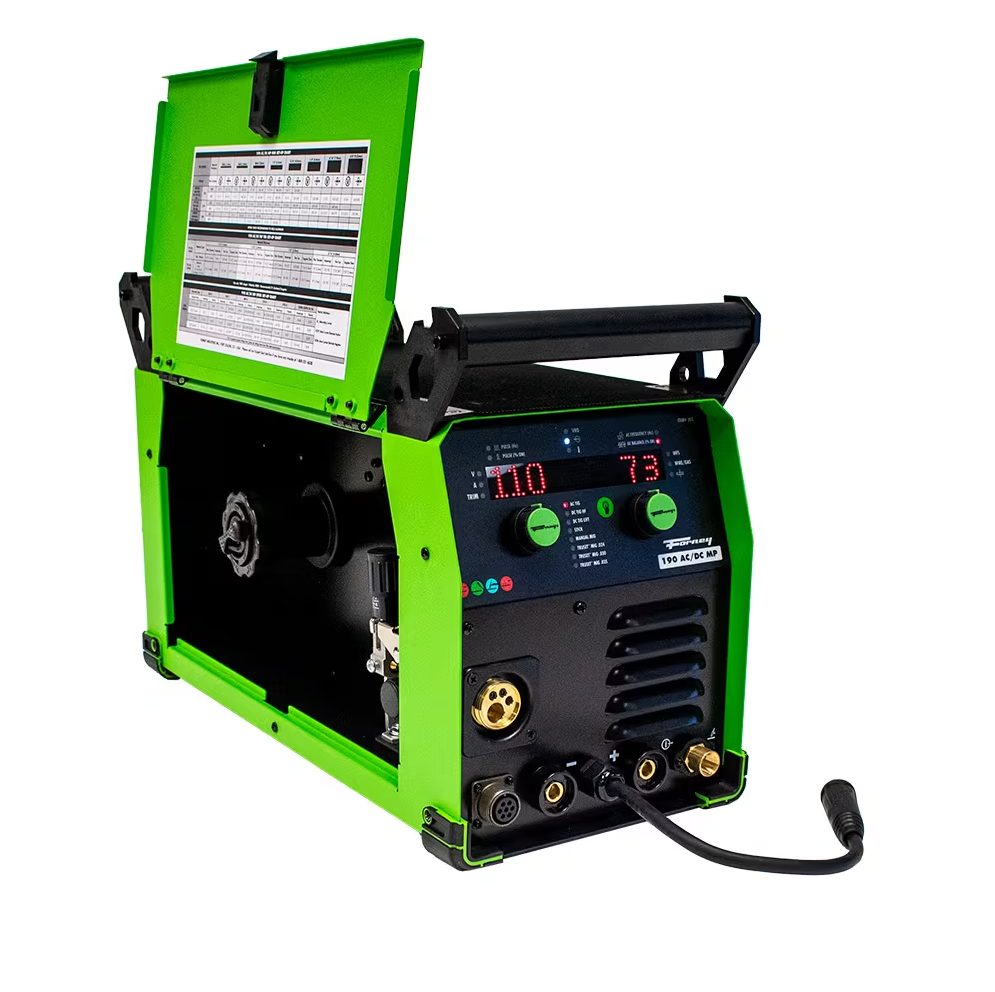

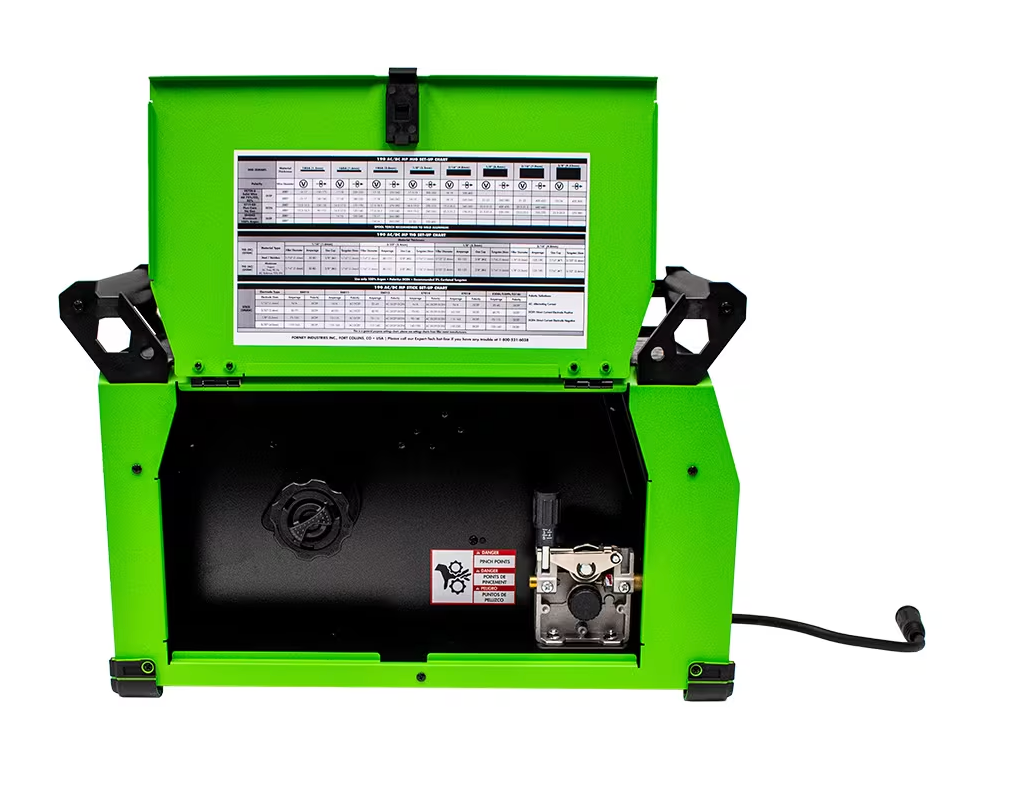

Set & Forget Despooler: Delivers perfect spool tension with every change
-
Advanced TIG: Pulse TIG, AC Balance, and AC Frequency control
-
Euro Torch Connection: Quick torch changes with accurate alignment
-
Dual Gas Inputs: Separate MIG & TIG gas ports
-
Generator Compatible: 120V (4000W), 240V (10,500W), ≤5% THD
-

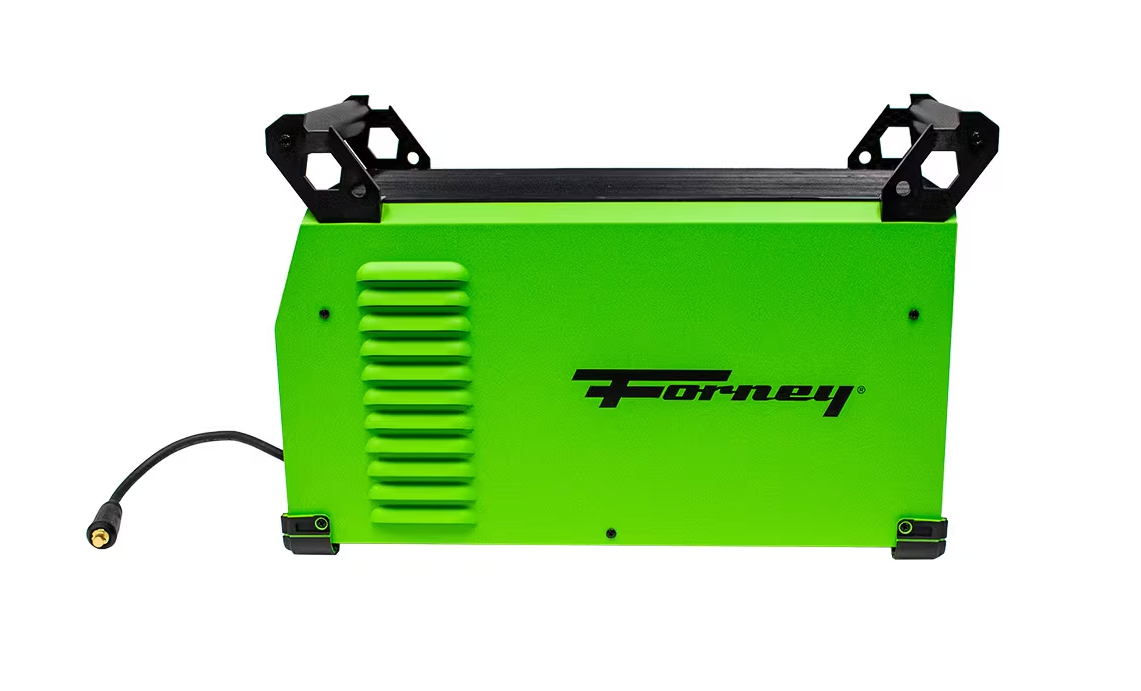

Built Tough: Rugged all-metal case with digital display
-

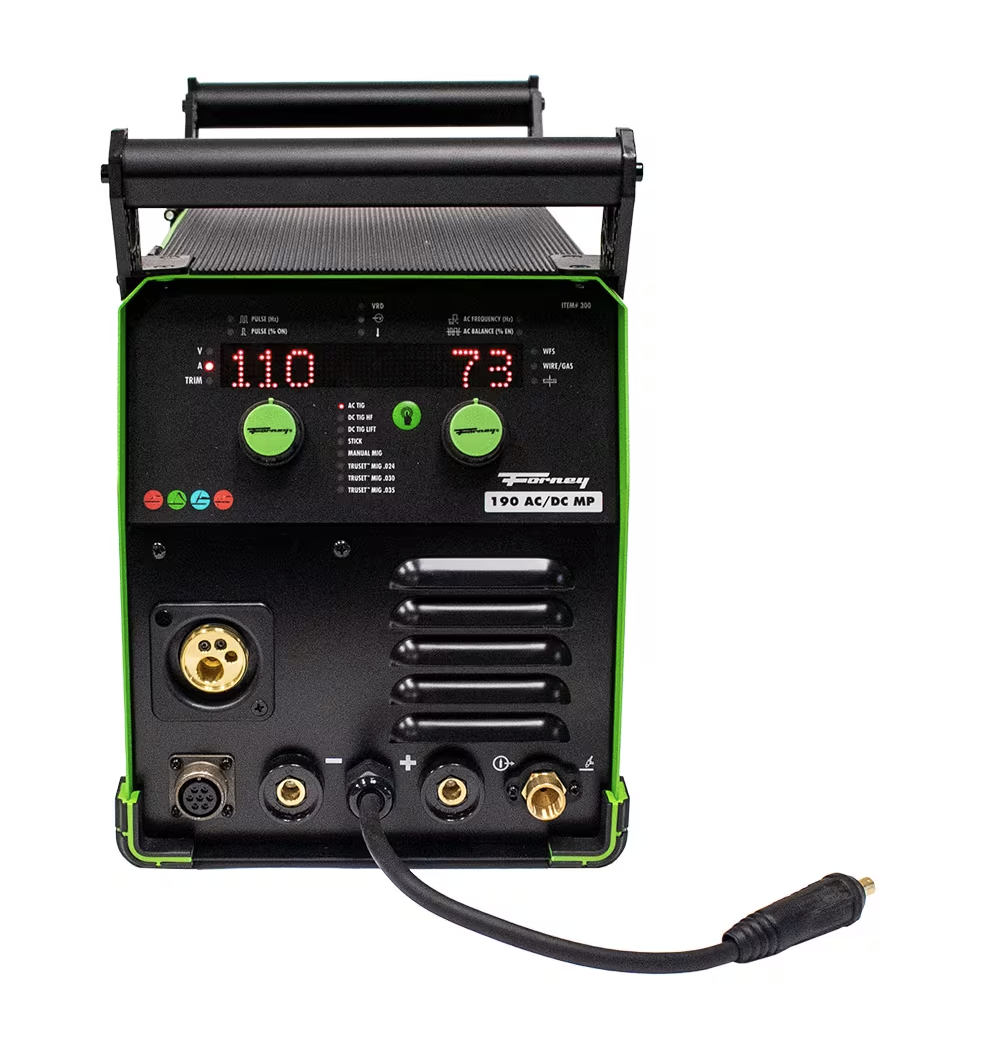

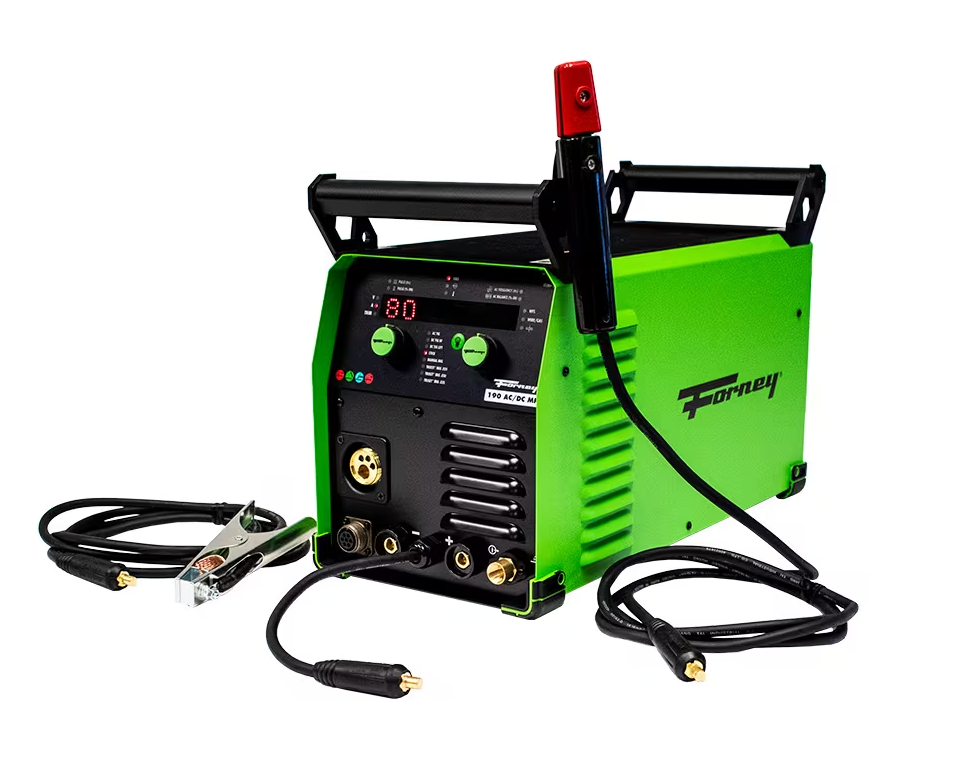

Quick Polarity Swap: Front panel connectors make switching fast
-
Torch Wrap Handle: Built-in cable organization

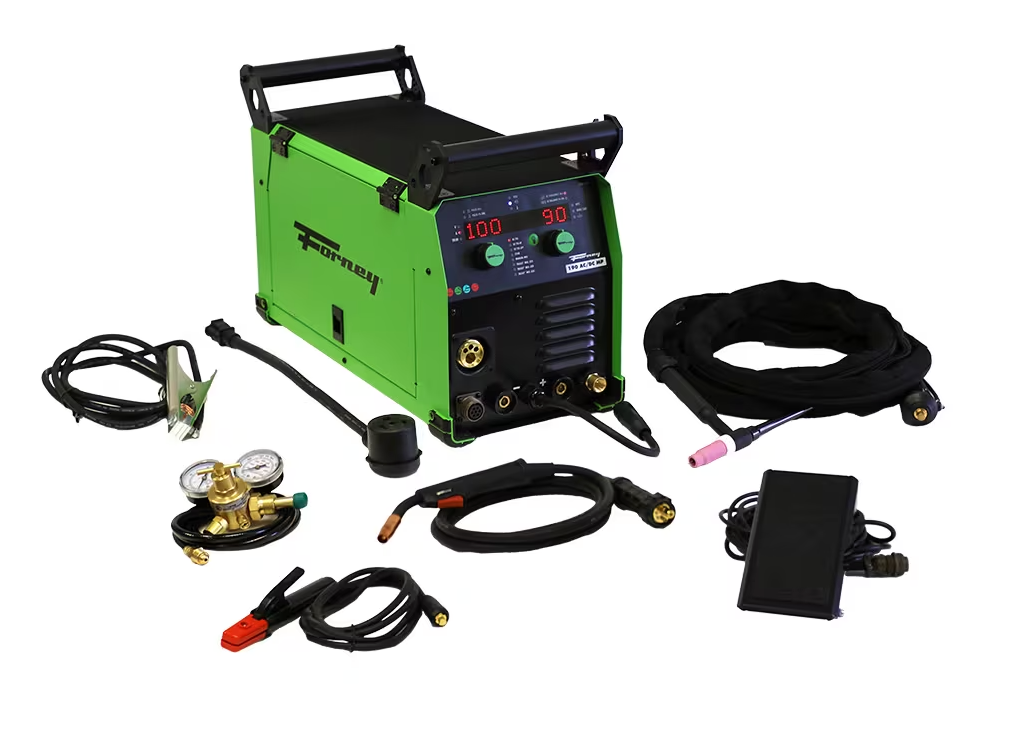

Included Accessories
- MIG Torch (Euro Connect, 10’ Cable)
- TIG Torch 17F (12’ Cable)
- Electrode Holder (8’ Cable)
- Ground Clamp (8’ Cable)
- Foot Pedal
- Gas Hose (6’)
- Flowgauge Regulator
- 240V–120V Adapter
- Spare Consumables
- Forney Expert-Tech™ Tool & Magnet
Unit Specifications
-
Weight: 74 lbs. (33.5 kg)
-
Dimensions: 14.13” x 24.5” x 19”
-
Warranty: 3-Year Manufacturer Warranty
-
Certifications: CSA Listed
Recommended Accessories & Consumables
- Spool Gun: Forney #85650
- Flow Meter: Forney #85364
- TIG Torch: Forney #85658
- TIG Foot Pedal: Forney #85655
- PRO-Grip 17F TIG Package: Forney #85660
- Tweco® Contact Tips: Forney #60170, #60171, #60172
- Diffuser: Forney #85339
- Nozzles: Forney #85336, #85337
- Liner: Forney #100356
- Replacement MIG Torch: Forney #84094
- Electrode Holder: Forney #85669
- Ground Cable Assembly: Forney #85667
- 120V Adapter: Forney #78036
- Replacement Foot Pedal: Forney #85610
- Drive Roll: Forney #78038
