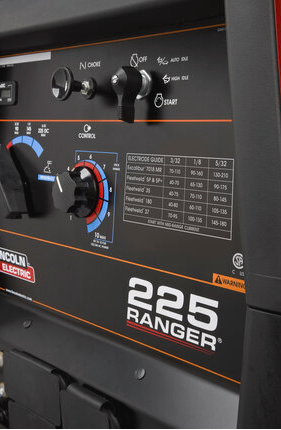

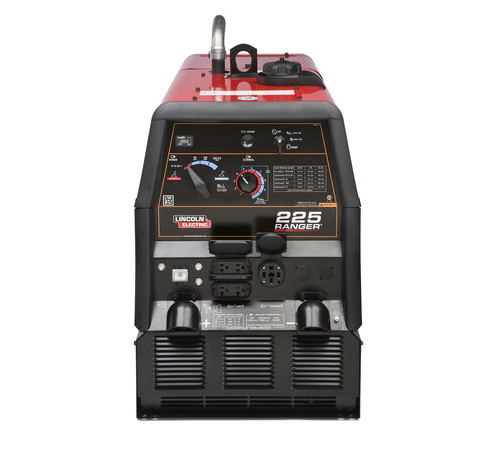

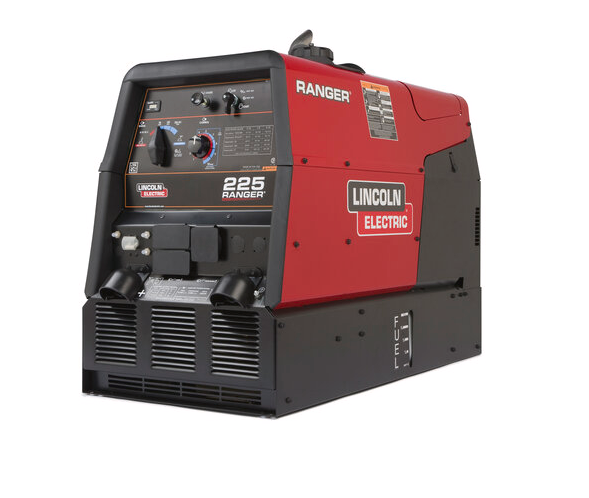

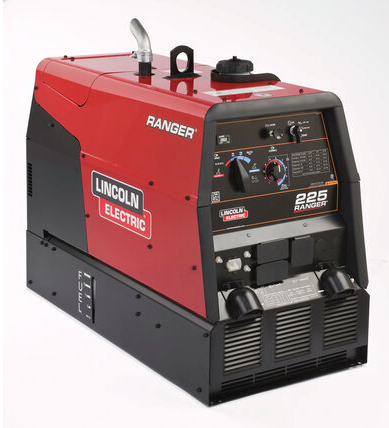

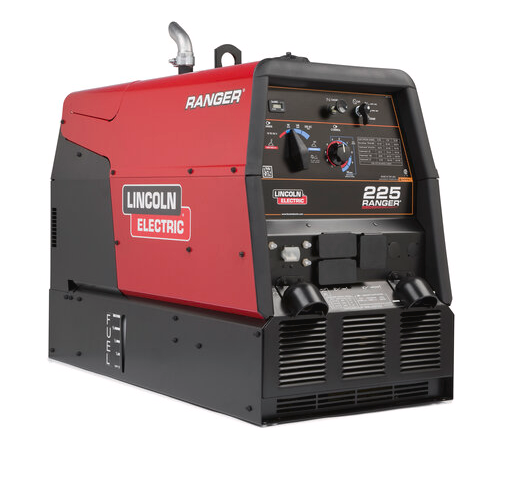

Lincoln Electric - Ranger® 225 Engine Driven Welder (Kohler®)
Lincoln Electric - Ranger® 225 Engine Driven Welder (Kohler®)
SKU:K2857-1
Couldn't load pickup availability
Share this product
Product Overview
The Ranger® 225 is a rugged, multi-process, engine-driven welder designed to tackle Stick, TIG, MIG, and Flux-Cored welding jobs on the job site, farm, or in the field. Built with a totally enclosed case for low-noise operation and powered by a dependable 23 HP Kohler® gasoline engine, it delivers up to 10,500 Watts of AC generator power and smooth DC welding performance in all environments. From general fabrication to tough construction work, the Ranger® 225 is built to perform.
💳 $700 REBATE AVAILABLE
Receive a $700 VISA Gift Card rebate when you purchase the Ranger® 225!
- Visit lincolnrebates.com
- Complete your account registration
- Submit a claim with the machine’s serial number
- Circle accessory/filler items on your receipt to stack rebates
- Click “Complete My Claim”
Offer valid in the U.S. only. Rebate ends June 30, 2025.
Key Features
- Totally Enclosed Case: Protects the engine with three service doors and keeps noise levels down to 76.4 dBA at 23 ft.
- Multi-Process Versatility: Stick, MIG, TIG, and Flux-Cored welding in one unit (accessories required for MIG/TIG).
- 10,500 Watts Peak Generator Output: 9,000W continuous AC power for tools, lights, and plasma cutters.
- Powerful Kohler® Engine: 23 HP air-cooled gas engine with 12-gallon fuel capacity and visual fuel gauges.
- Built to Work: Designed for consistent performance even at 104°F (40°C) environments.
What's Included
- Ranger® 225 Engine Driven Welder
- Comprehensive documentation including spec sheets and CAD files
Specifications
- Processes: Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW-S, FCAW-G)
- Generator Output: 10,500W peak / 9,000W continuous AC, 120/240V, 60 Hz
- Welding Output: Stick & TIG: 50–225A, CV Wire: 15–25V
- Engine: Kohler® CH730, 23 HP, 2-cylinder, air-cooled
- Fuel Tank: 12 gal. (45.4 L), 1.5 gal/hr at 100% duty cycle
- Dimensions: 30 in x 21.5 in x 42.3 in (762 mm x 546 mm x 1073 mm)
- Weight: 514 lbs (233 kg)
Recommended Accessories
- K1690-1 – GFCI Receptacle Kit
- K1898-1 – Spark Arrestor Kit
- K704 – 400 Amp Accessory Kit
- K2808-1 – Tomahawk® 1000 Plasma Cutter
- K5126-1 – Square Wave® TIG 200 TIG Welder
- K1770-2 / K1770-3 – Ranger® Factory Undercarriage (Pneumatic / Flat-Free)
- K1737-3 – Ranger® All-Terrain Undercarriage (Flat-Free)
Applications
- Construction
- General Fabrication
- Maintenance & Repair
- Outdoor Welding
Warranty
Covered by a 3-Year Lincoln Electric Warranty. Kohler® engine warranty provided separately by engine manufacturer.
