Lincoln Electric - POWER MIG® 140 MP® Multi-Process Welder

Product Overview

The POWER MIG® 140 MP by Lincoln Electric delivers compact versatility in a lightweight, portable package. This multi-process machine connects to standard 120V household power and is capable of MIG, Stick, Flux-Cored, and DC TIG welding. With intuitive controls and a broad amp range across all processes, this is the perfect welder for home use, light fabrication, repair, and hobby welding.

Key Features

• Versatile Performance: Welds MIG 30–140A, DC TIG 10–120A, Stick 25–90A.

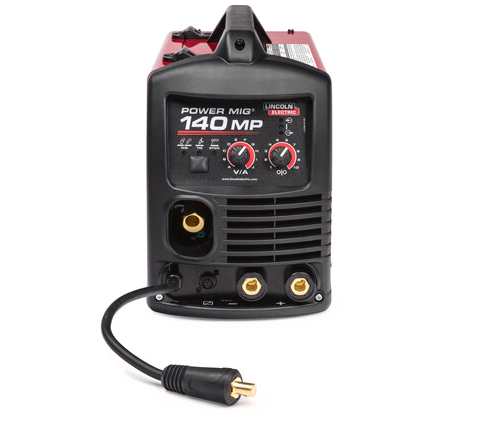

• Simple Controls: Two-knob wire feed speed and voltage control with single-button process selection.
• Compact Design: Weighs just 34.5 lbs and plugs into 120V household power for maximum portability.

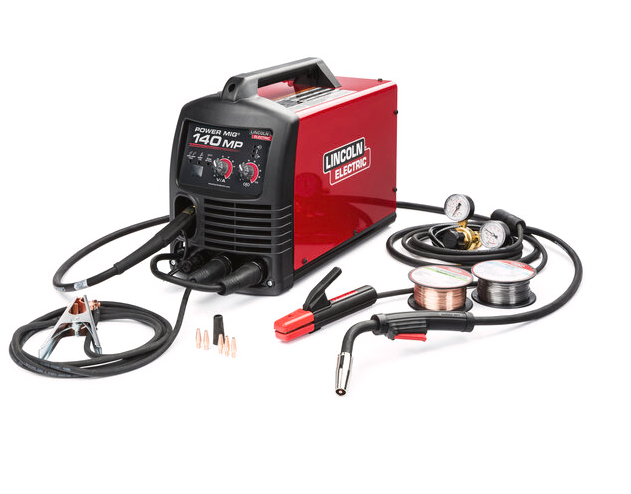

What's Included

• POWER MIG® 140 MP Multi-Process Welder
• Magnum PRO 100L Gun with 10 ft. (3 m) Cable, 8-pin Connector
• 3x Tapered Contact Tips (0.025 in.)
• 3x Tapered Contact Tips (0.035 in.)
• Gasless Nozzle (for Innershield Welding)
• Gas Nozzle (for MIG Welding)
• Spindle Adapter for 8 in. Spools
• KP2948-1 Drive Roll for 0.025–0.035 in. Wire
• Gas Regulator and 52 in. Hose (Part #3000290)
• Sample Spool of SuperArc® L-56 0.025 in. MIG Wire
• Sample Spool of Innershield® NR-211-MP 0.035 in. Flux-Cored Wire
• Work Clamp with 10 ft. Cable
• Electrode Holder with 10 ft. Cable (Stick Welding)

Specifications

• Processes: MIG, Flux-Cored, Stick, DC TIG
• Input Voltage: 120V / 1 / 60 Hz
• Weight: 34.5 lbs (15.65 kg)
• Power Source: Single Phase
• Polarity: DC

Documentation & Resources

• POWER MIG® 140 MP Product Info
• K4498-1 CAD File (.stp)
• K4498-1 CAD File (.x_t)

Warranty

Backed by Lincoln Electric’s Manufacturer Warranty.
